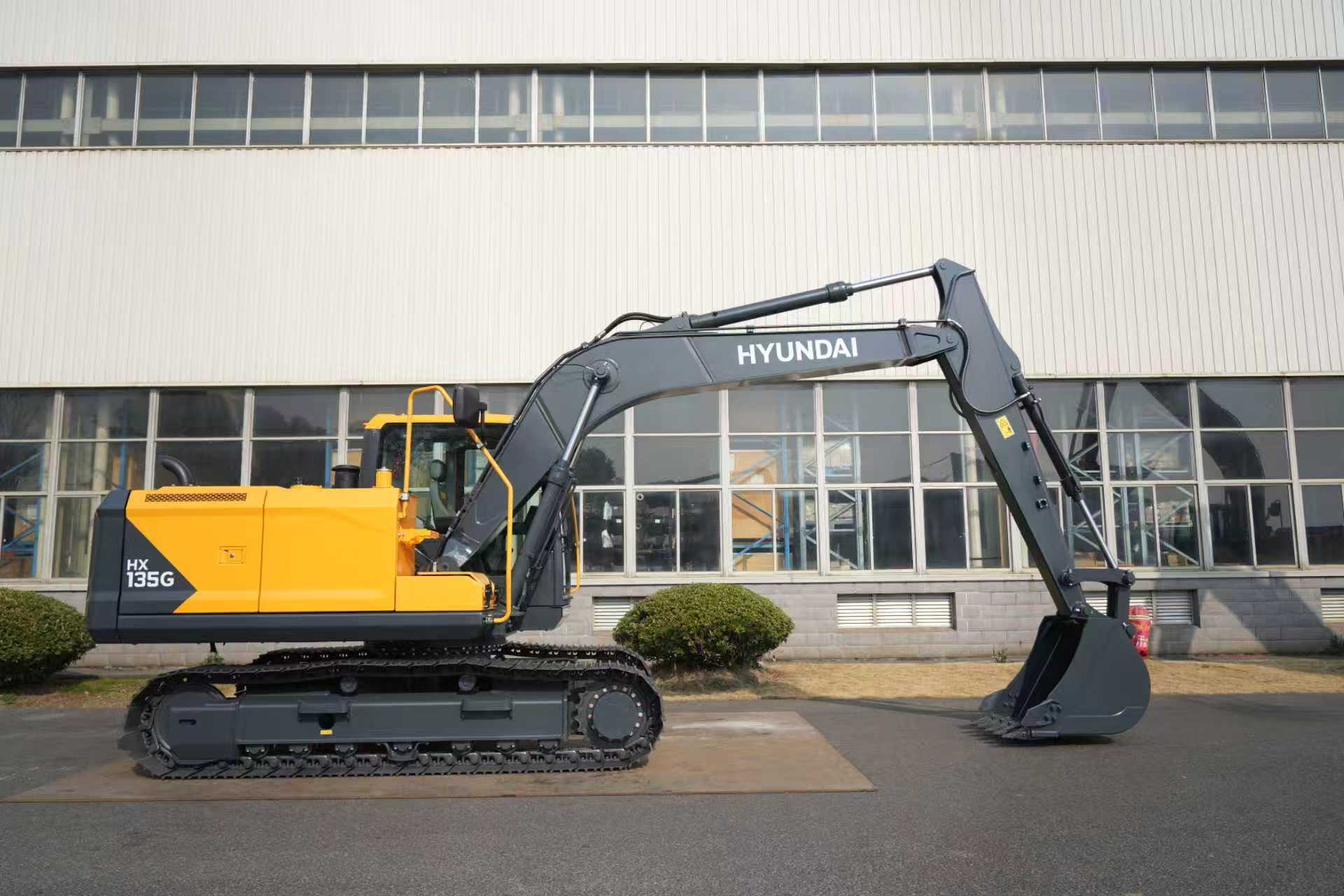

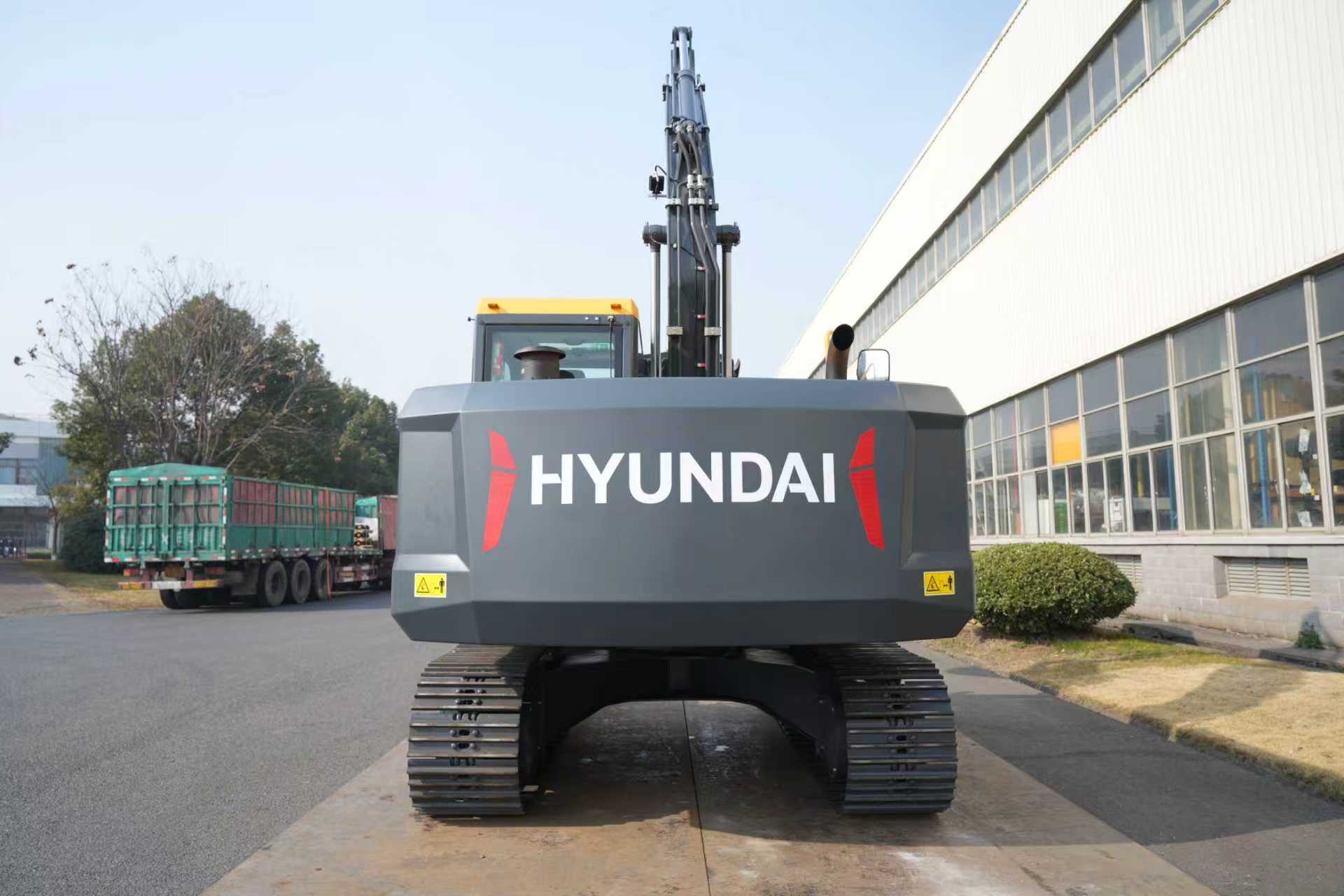

HYUNDAI HX135G Earthmoving Machinery Crawler Excavator
HYUNDAI HX135G Earthmoving Machinery Crawler Excavator is a high-quality Crawler Excavator supplied by Lonchain Group. Key features: Hyundai HX135G crawler excavator, 13 ton Hyundai excavator, HX135G Earthmoving Machinery, Hyundai HX135G for sale, Fuel-efficient Hyundai excavator, Hyundai HX135G hydraulic excavator. As a professional construction machinery exporter, Lonchain Group offers factory-direct pricing, worldwide shipping, and dedicated after-sales support.
Specifications Table 1
| Item | Specification |
| Model | HX135G |
| Operating Weight | 13,800 kg |
| Bucket Capacity | 0.56 m³ |
| Engine Brand | Weichai (Standard) / Yuchai (Optional) |
| Engine Model | WP4.1G100E440 (Weichai) / YCF36125-T482 (Yuchai) |
| Rated Engine Power | 74 kW @ 2,200 rpm |
| Emission Standard | China IV / Tier 4 Final |
| Max. Torque | 480 N·m @ 1,300~1,600 rpm |
| Displacement | 4,088 cc |
| Max. Digging Depth | 5,310 mm |
| Max. Digging Height | 8,510 mm |
| Bucket Digging Force (ISO) | 76 kN (7.6 tonf) |
| Arm Digging Force (ISO) | 62 kN (6.3 tonf) |
| Swing Speed | 10.6 / 11.5 rpm |
| Swing Torque | 40 kN·m |
| Travel Speed | 3.6 / 5.6 km/h |
| Gradeability | 35° |
| Max. Drawbar Pull | 115 kN (11.5 tonf) |
| Boom Length | 4,600 mm |
| Arm Length | 2,500 mm |
| Overall Length | 7,880 mm |
| Overall Width | 2,500 mm |
| Overall Height | 2,865 mm |
| Track Shoe Width | 500 mm |
| Minimum Ground Clearance | 422 mm |
| Tail Swing Radius | 2,559 mm |
| Fuel Tank Capacity | 290 L |
| Hydraulic Tank Capacity | 200 L |
| Engine Oil Capacity | 12 L |
Key Specifications
| Parameter | Value |
| Bucket Capacity | 0.56m³ |
| Max. Digging Height | 8510 |
| Max. Digging Depth | 5310 |
| Engine Brand | WEICHAI |
| Engine Power | 74KW |
| Digging Force | 76kN |
Packaging & Dimensions
| Item | Value |
| Overall Dimensions (L×W×H) | 788X250X290 cm |
| Overall Weight | 13800 kg |
| Shipping Method | Bulk cargo shipment |
| Delivery Period | 20 days |
| Certificate | Provided |
| Origin | Korea |
| HS Code | 8429521200 |
Packaging & Shipping
| Item | Value |
| Overall Dimensions (L×W×H) | 788X250X290 cm |
| Overall Weight | 13800 kg |
| Shipping Method | Bulk cargo shipment |
| Delivery Period | 20 days |
| Certificate | Provided |
| Origin | Korea |
| HS Code | 8429521200 |
