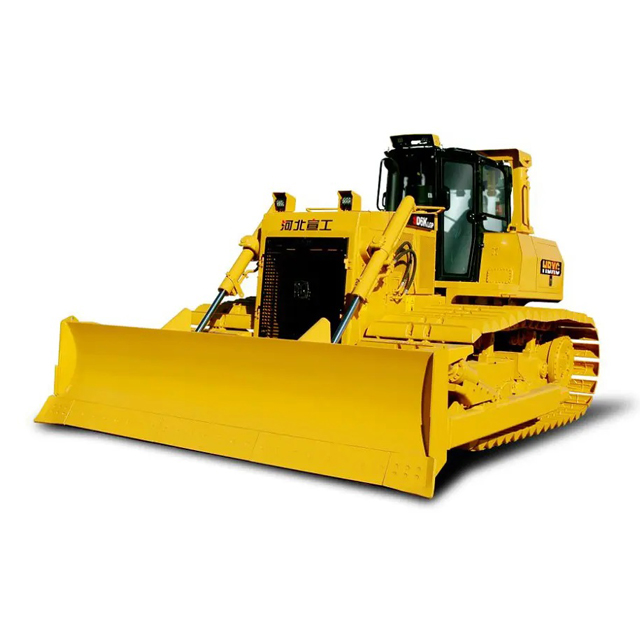

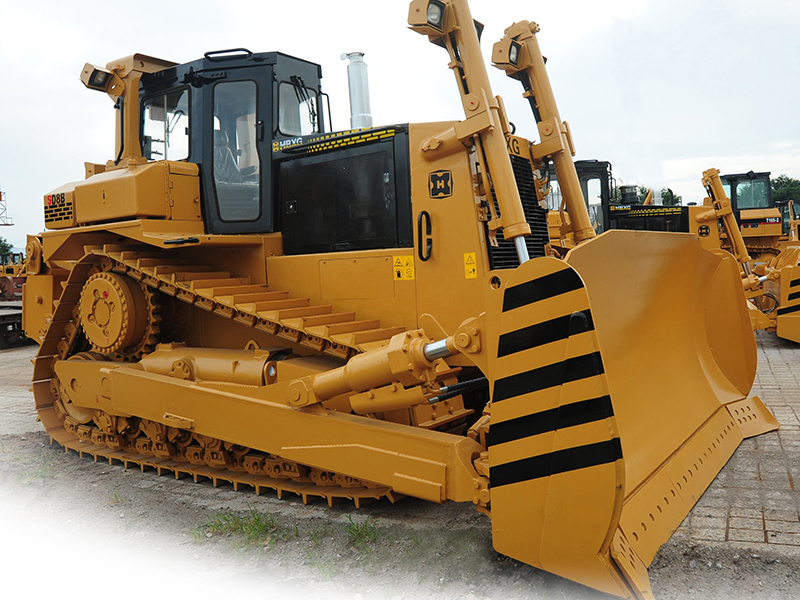

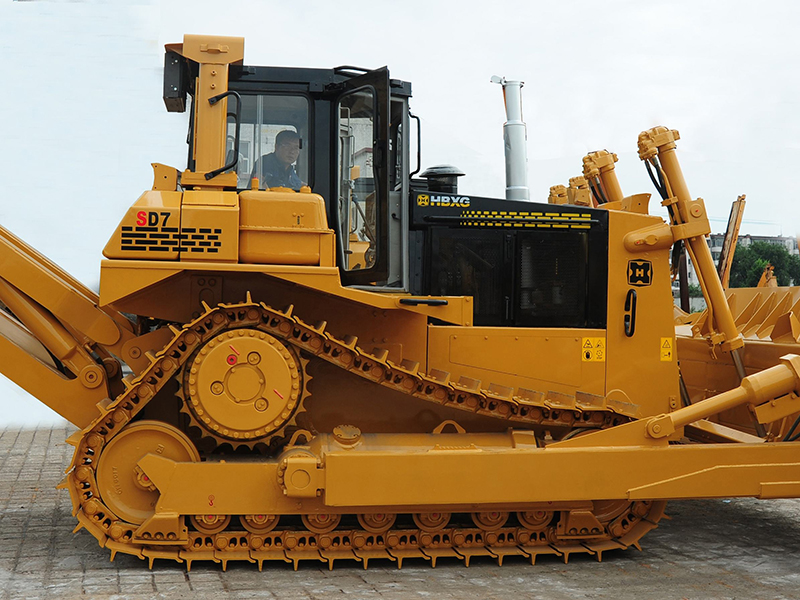

HBXG SD7N Earthmoving Machinery Bulldozer
HBXG SD7N Earthmoving Machinery Bulldozer is a high-quality Bulldozer supplied by Lonchain Group. Key features: Earthmoving Machinery, Bulldozer, 230hp Crawler Bulldozer, Crawler Bulldozer, Machinery, Earthmoving Machinery, Bulldozer Earthmoving Machinery, Earthmoving. As a professional construction machinery exporter, Lonchain Group offers factory-direct pricing, worldwide shipping, and dedicated after-sales support.
Specifications Table 1
| Operating weight(not including ripper) | 23800 |
| Ripper weight | 3900 |
| Engine flywheel power | 162kw |
| Ground pressure(without ripper) | 71.9kPa |
| Ground clearance | 404mm |
| Ground contact length | 2890mm |
| Track center distance | 1980mm |
| Overall dimensions(L×W×H) (with single shank ripper) | 7604×3823×3402(with straight tilting blade) |
| Grade ability | Latitude30 ° Transverse 25° |
| 1st gear forward 0-3.9 | 1st gear backward 0-4.8 |
| 2nd gear forward 0-6.5 | 2nd gear backward 0-8.2 |
| 3rd gear forward 0-10.9 | 3rd gear backward 0-13.2 |
| Dozing operation rate(moving distance 40m) | 350m 3 /h |
| Model | NT855-C280 or C6121ZLG10 (Licensed CAT 3306 diesel engine) |
| Type | water cooled, single line, vertical, four strokes, turbocharged, 6-cylinders, diameter 140mm or 121mm. |
| Rated speed | 2100 RPM |
| Flywheel power | 169 kW |
| Start mode | 24V electric starting |
Key Specifications
| Parameter | Value |
| Engine Power | 162kw |
| Engine Brand | HBXG |
| Blade Type | 3500 |
| Blade Capacity | 7 |
| Track Shoe Width | 560 |
| Max. Cutting Depth | 498 |
| Track gauge(mm) | 1980 |
| Ground pressure(KPa) | 71.9 |
| Total Quantity In Stock | Over 5000 |
| Ground clearance | 404mm |
Packaging & Dimensions
| Item | Value |
| Overall Dimensions (L×W×H) | 7616*3500*3402 |
| Overall Weight | 23 Tons |
| Shipping Method | 560 |
| Delivery Period | 30 days |
| Certificate | 1 |
| Origin | China |
| HS Code | SD7N |
Packaging & Shipping
| Item | Value |
| Overall Dimensions (L×W×H) | 7616*3500*3402 |
| Overall Weight | 23 Tons |
| Shipping Method | 560 |
| Delivery Period | 30 days |
| Certificate | 1 |
| Origin | China |
| HS Code | SD7N |
Get a Quote
Interested in this product? Contact Lonchain Group for the latest price, specifications, and shipping options.
