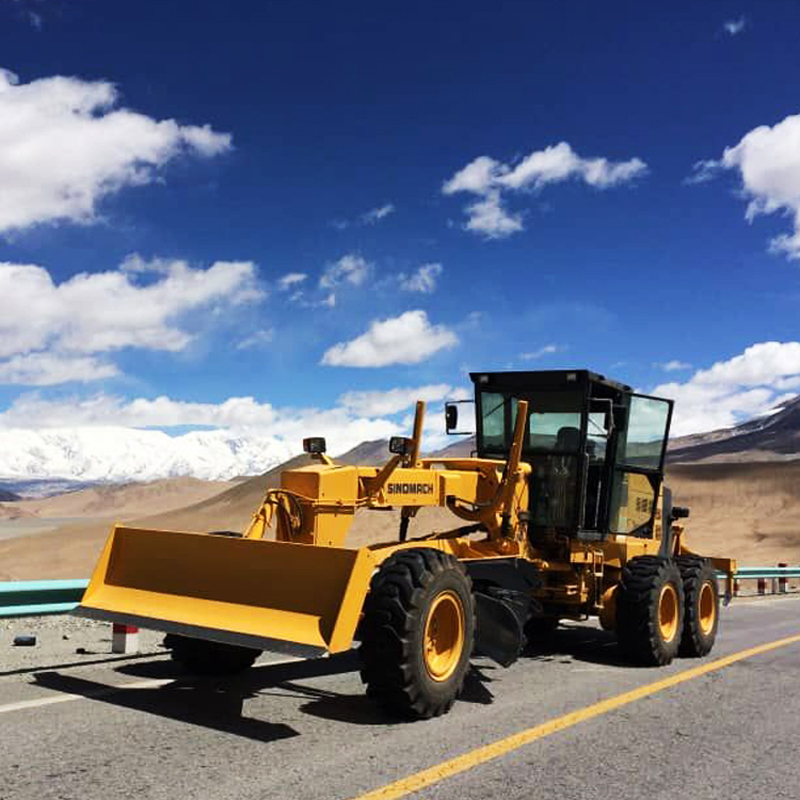

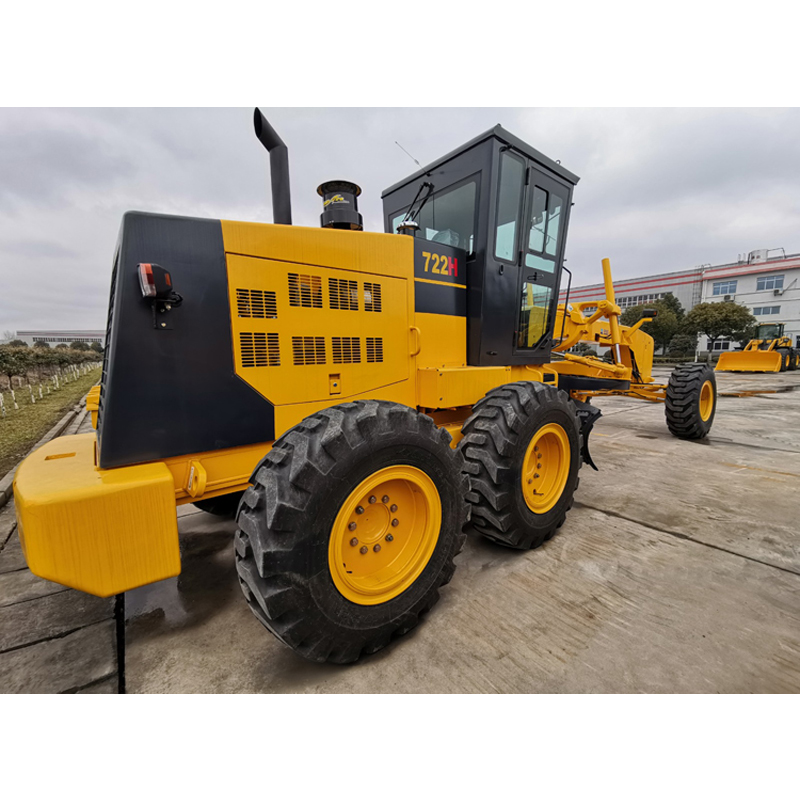

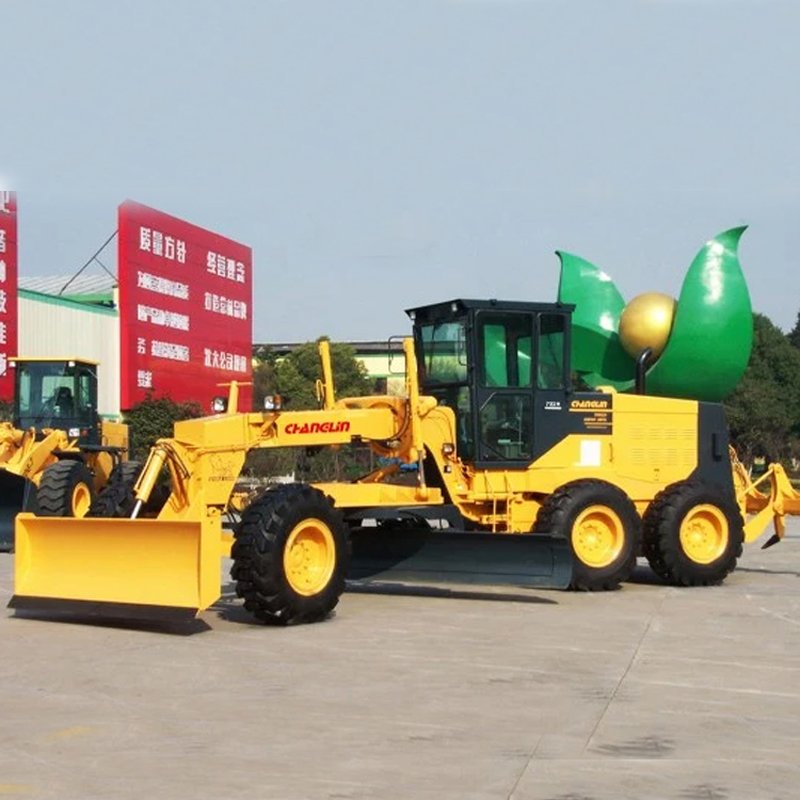

CHANGLIN 722H Road Construction Machinery Motor Grader
CHANGLIN 722H Road Construction Machinery Motor Grader is a high-quality Motor Grader supplied by Lonchain Group. Key features: road machinery, motor grader, mini grader, changlin 722h, 220hp motor grader, new motor grader. As a professional construction machinery exporter, Lonchain Group offers factory-direct pricing, worldwide shipping, and dedicated after-sales support.
Product Video
Specifications Table 1
Model
722H
Engine model
SC11CB220G2B1
Rated power
162KW@2200rpm
Dimension(L×W×H)
9250×2600×3420（mm）
Operating weight(Standard)
16100KG
Travelling speed, forward
6.7/10.2/15.2/22.5/31.6/45.1
Travelling speed, reverse
6.7/15.1/31.3
Tractive force(f=0.75)
82.8KN
Max. steering angle of front wheels
49°
Max. lean angle of front wheels
17°
Max. oscillation angle of front axle
16°
Max. oscillation angle of balance box
13°
Frame articulation angle
26°
Min. turning radius using articulation
7.4m
Maximum lift above ground
450mm
Maximum grading depth
535mm
Maximum blade position angle
90°
Blade cutting angle
29°~77°
Circle reversing rotation
360°
Moldboard width × height
4320×580mm
Key Specifications
Parameter
Value
Engine Power
162kW
Engine Brand
CUMMINS
Travel Speed
2200rpm
Max. Cutting Depth
535mm
Blade Width
4320mm
Attachment
ripper
Engine lubricating oil
27L
System pressure
17.5MPa
Max. drawing force
82.8KN
Gear shift position
6 Forward and 3 reverse gears
Packaging & Dimensions
Item
Value
Overall Dimensions (L×W×H)
9250x2600x3420mm
Overall Weight
16100
Shipping Method
40HQ*1
Delivery Period
30 days
Certificate
SGS
Origin
China
HS Code
8429209000
Packaging & Shipping
Item
Value
Overall Dimensions (L×W×H)
9250x2600x3420mm
Overall Weight
16100
Shipping Method
40HQ*1
Delivery Period
30 days
Certificate
SGS
Origin
China
HS Code
8429209000
Get a Quote
Interested in this product? Contact Lonchain Group for the latest price, specifications, and shipping options.
